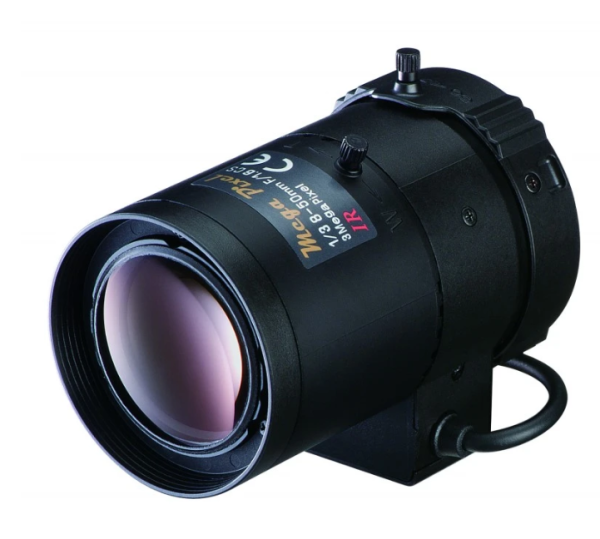

Tamron makes a series of mega-pixel compatible vari-focal lenses that derive the maximum performance from mega-pixel high-resolution cameras. Tamron’s mega-pixel compatible Vari-Focal lenses incorporating advanced optical systems ensure high resolution and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.

Specifications

Imager Size	1/2.7″
Mount	CS
Focal Length	8 to 50 mm
Aperture Range	F/1.6 to 360
Angle of View	1/2.7″ Wide 40.2° x 22.6°, Tele 6.5° x 3.8°
1/3 Wide	33.5° x 25.1°, Tele 5.6° x 4.2°
1/4 Wide	25.1° x 18.8°, Tele 4.2° x 3.2°
Focus Range	2m to infinity
Focus Access	With manual lock
Zoom Access	With manual lock
Iris	DC Auto Iris
Filter Thread Diameter	–
Back Focus	8.08mm (in air)
Compatible Wavelengths	Visible light range to near infrared range
Operating Voltage	OPEN: 4.0V, CLOSE: 0.5V
Weight	106g (shi 10g)

Features:

Focal Length: 8-50mm for versatile zoom range
Aperture Range: F/1.6 to F/360 for optimal light control
IR Compatibility: Supports visible to near-infrared (IR) light spectrum
Auto Iris (DC): Automatically adjusts to varying lighting conditions
Manual Zoom and Focus Locks: Provides precise image control
CS-Mount: Ensures compatibility with standard industrial cameras
High Resolution: Up to 3 Mega Pixels for crisp, detailed imaging
Operating Temperature: Designed to work in harsh environments (-20℃ to +60℃)

Datasheet

CCTV

Advanced Security Solutions For Every Space

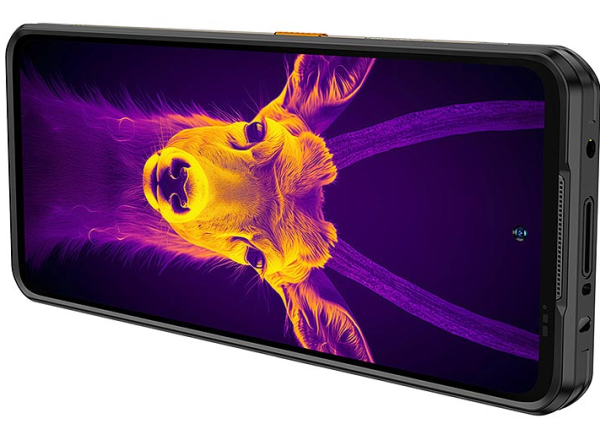

Ulefone Armor 25T Pro 5G Rugged Smartphone

Tamron M13VG850IR-MSI Lens

Add To cart

Wishlist

Call Us

New Arrival

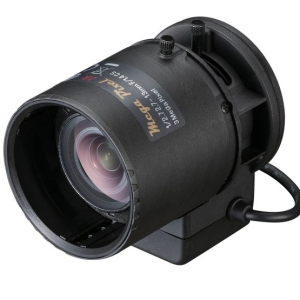

TAMRON M13VG2713IR-MSI Lens

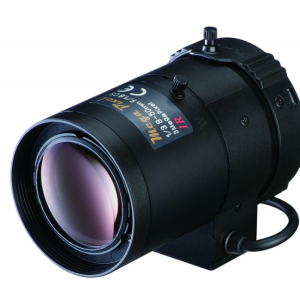

Tamron M13VG850IR-MSI Lens

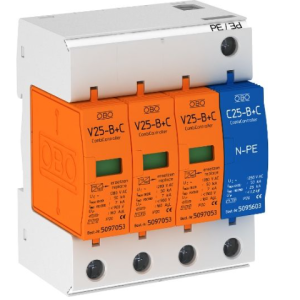

Surge Protection V25-B+C3+NPE OBO BETTERMANN
