Description

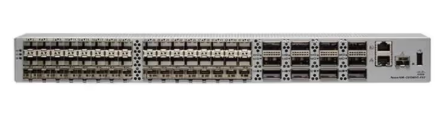

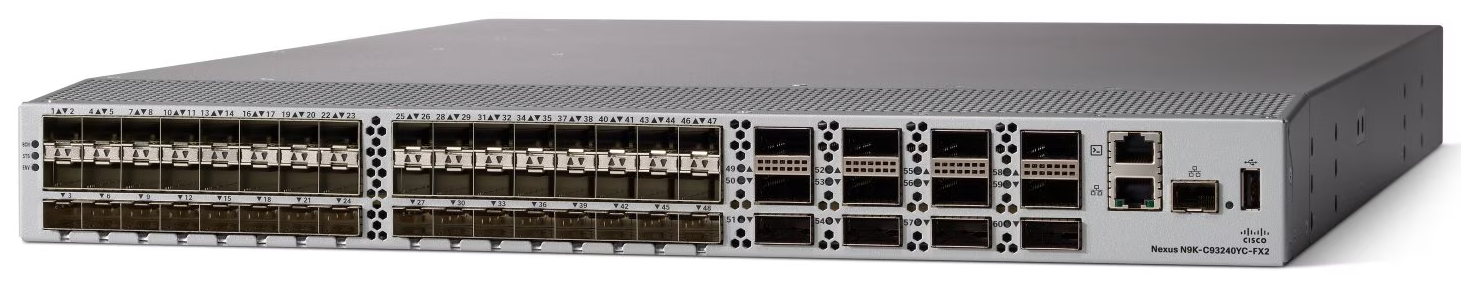

N9K-C93240YC-FX2, Cisco Nexus 9000 Switch, 48x25G SFP+/12x100G QSFP28
PAC-750W-PI & NXOS-SLP-INFO-9K & NXOS-64-10.2.1F & CAB-C13-C14-AC & NXA-PAC-1100W-PI2
The Cisco Nexus C93240YC-FX2 Switch is part of the Cisco Nexus 9300-FX2 Series. This model offers Layer 2 and 3 features to support enterprise applications, service provider hosting, and cloud computing environments. Features that are supported include; BGP, OSPF, EIGRP, RIPv2, PIM-SM, SSM and MSDP. These switches provide support for a variety of port speeds and flexible combinations of 1/10/25/40/100-Gbps connectivity in compact form factors and are MACsec capable.
| Feature | Description |
|---|---|
| Model | N9K-C93240YC-FX |
| Integrated Ports | 48 x 1/10/25GbE SFP+ & 12 x 40/100GbE QSFP28 Ports |
| Power Supplies Installed | 2 x 1100W Hot Swap Power Supply Units |
| Air Flow | Port-Side Exhaust |
| Operating System | NX-OS |
| Licenses Installed | Base Operating System |
| Switching Capacity | Up to 4.8 Tbps of Bandwidth |
| Management | Fully Manageable |
| Smartnet Support | Clean – Not Smartnet Covered |
| Chassis Type | 1U Rackmountable |
| Rack Mounting Kit | Sliding Rail Kit Included (3rd Party) |
