Server H80BZ1MABR01 OLT MA5608T with CONTROL UNIT – HUAWEI

Description

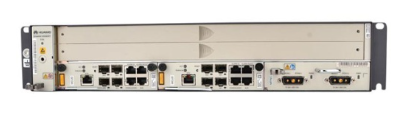

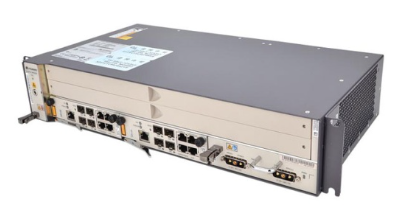

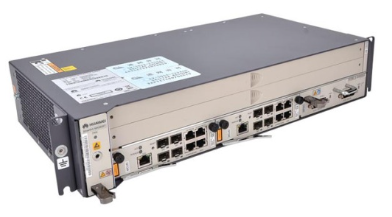

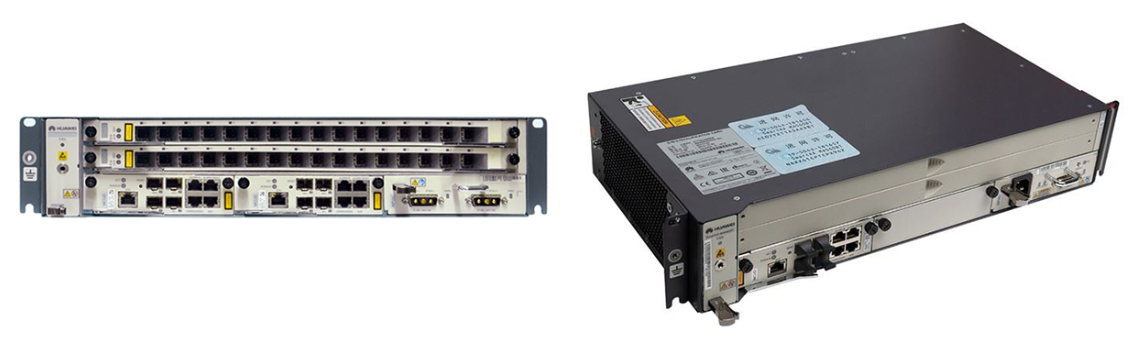

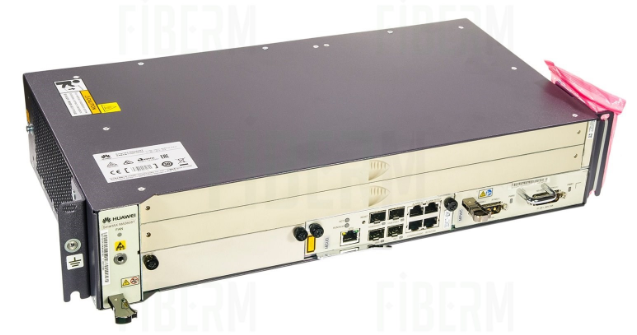

Huawei MA5608T UPLINK-1GE is an OLT terminal designed for GPON networks. The enclosure of this terminal has a height of 2U, allowing the installation of up to two service boards (GPON).

The package does not include a service board, which is available for separate purchase. With Huawei MA5608T, you can flexibly connect a maximum of 4096 subscribers, using two 16-port boards or 2048 subscribers with 8-port boards. In addition to the OLT, the package includes a AC power board  and two control boards.

Package contents:

• • 1x HUAWEI-H801MPWC01 (power board, dual AC)

• • 1x HUAWEI-H80MCUD01 (control/uplink board, 4x 1 GE)

• • 1x HUAWEI-MA5608T-CHASS (MA5608T enclosure)

• • 1x HUAWEI-MA5608T-ACC (accessories)

• • 1x HUAWEI-H80BZ1MABR01 (mini service shelf)

• • 1x HUAWEI-H831FCBB0 (fan)

Additionally, to fulfill the role of a complete OLT solution, the service board is available separately. It allows for further expansion of the system’s functionality, adapting it to specific network requirements. This flexibility enables users to adjust the configuration based on the number of subscribers and their individual needs, making Huawei MA5608T UPLINK-1GE a versatile and scalable solution for GPON networks
