Description
Product Name:

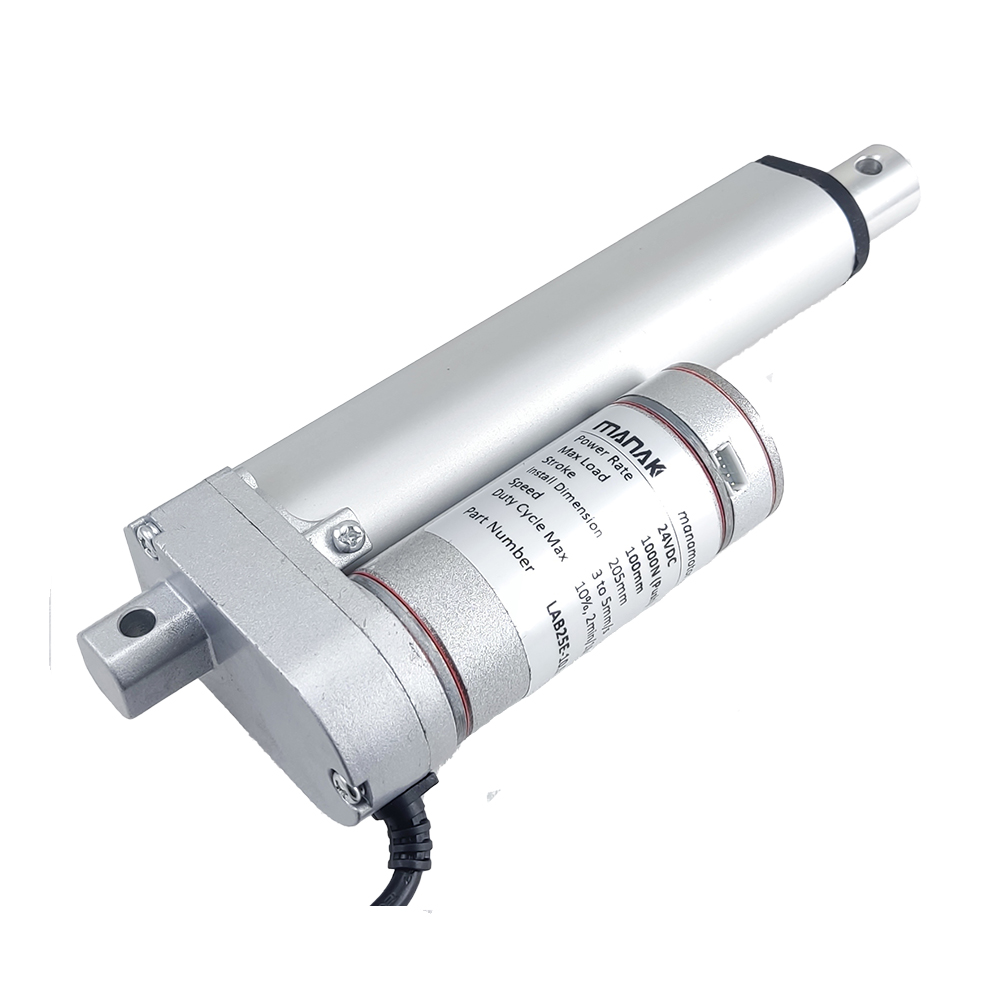

6 mm/s speed, 50mm stroke, 24W
Brand:
MANAK
Country of Origin:
China
Body Material:
Aluminum
Features and Attachments:
Built-in internal microswitch, anti-rotation jack rod system
Dimensions:
Closed length: 245 ±5 mm
Power Supply:
DC 24V
Typical Usage Speed:
6 mm/s | Duty Cycle Max: 10% (1 min ON / 9 min OFF)
Stroke:
50 mm
Linear Displacement (Stroke Travel):
50 mm
Linear Motor Length:
Closed: 155 mm | Extended: 205 mm
Load Capacity:
Pushing force: 800 N | Pulling force: 600 N
Screw Type:
Lead screw
Additional Info:
Equipped with internal microswitch and anti-rotation system
Speed under load: 6 mm/s
Speed without load: 10 mm/s
Product Authenticity:
Original
