Description
Product Name:

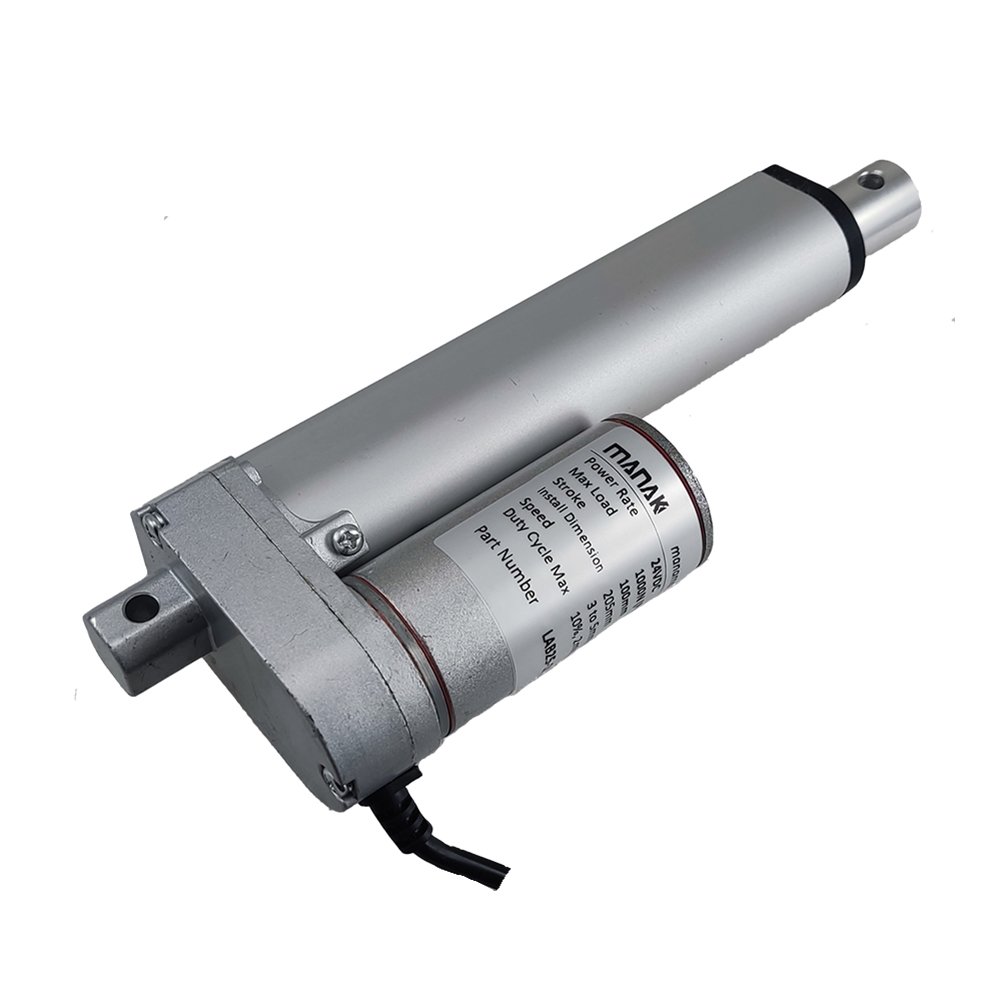

Electric Linear Actuator MANAK 1000N, 10 cm Stroke, 5 mm/s Speed, 24V, Model LAB25
Brand:
MANAK
Country of Origin:
China
Body Material:
Aluminum
Features and Attachments:
Built-in microswitch, anti-rotation jack rod system
Dimensions:
Closed dimensions: 224 × 75 × 40 mm
Power Supply:
DC 24V
Typical Usage Speed:
5 mm/s | Duty Cycle Max: 10% (2 min ON / 18 min OFF)
Stroke:
100 mm
Linear Motor Length:
Closed: 205 mm | Extended: 305 mm
Load Capacity:
Pushing force: 1000 N | Pulling force: 800 N
Actuator Type:
Standard Lead screw
Additional Info:
Built-in microswitch and anti-rotation system
Speed under load: 3 mm/s
Speed without load: 5 mm/s
Duty Cycle: Max 10% (2 min ON / 18 min OFF)
Product Authenticity:
Original
