Description

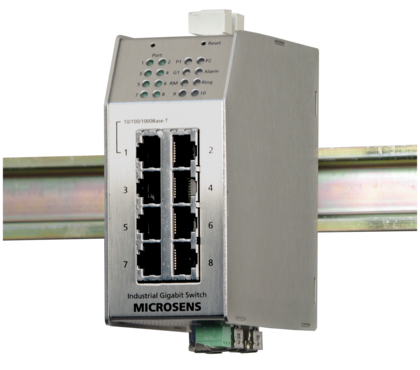

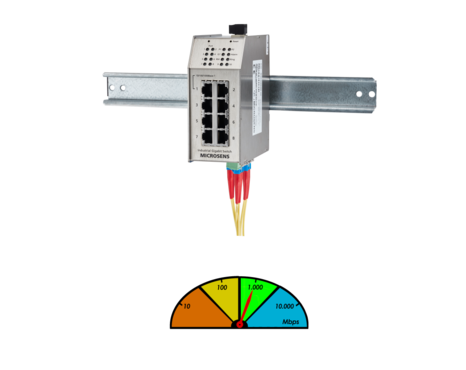

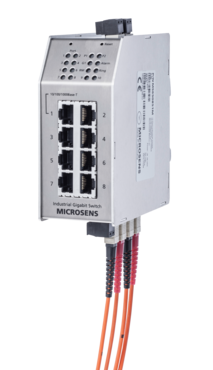

ProfiLine switches Gigabit 7×10/100, 3xSFP – Network switch 710/100 Mbit ports MS650869M-V2 – Microsens: ProfiLine Switches Gigabit 7×10/100, 3xSFP MS650869M-V2, Ethernet=yes, number of 10/100 Mbps RJ45 ports=7, number of 10/100/1000 Mbps RJ45 ports=1, number of other ports=3, mounting type = DIN rail, The 10-port gigabit switch has two 1000Base-X fiber optic connections for setting up a fiber optic ring (fast redundancy) and eight copper connections for connecting Ethernet devices such as machine controls, network uplinks, consoles and other network participants. This switch has full Power-over-Ethernet capability on all eight twisted pair connections. A PoE controller according to IEEE 802.3af is already integrated. The entire device is supplied directly with 48 V DC via an external power pack. In an extended version, this switch is also designed with a third gigabit fiber optic connection (1000Base-X). The ring topology (rapid redundancy) is implemented using a mechanism patented by MICROSENS, which reconfigures the Ethernet network in a matter of milliseconds in the event of an error.
| Ethernet | yes |
| Number of 10/100 Mbps RJ45 ports | 7 |
| Number of RJ45 10/100/1000 Mbps ports | 1 |
| Number of other ports | 3 |
| Mounting | DIN rail |
