Description

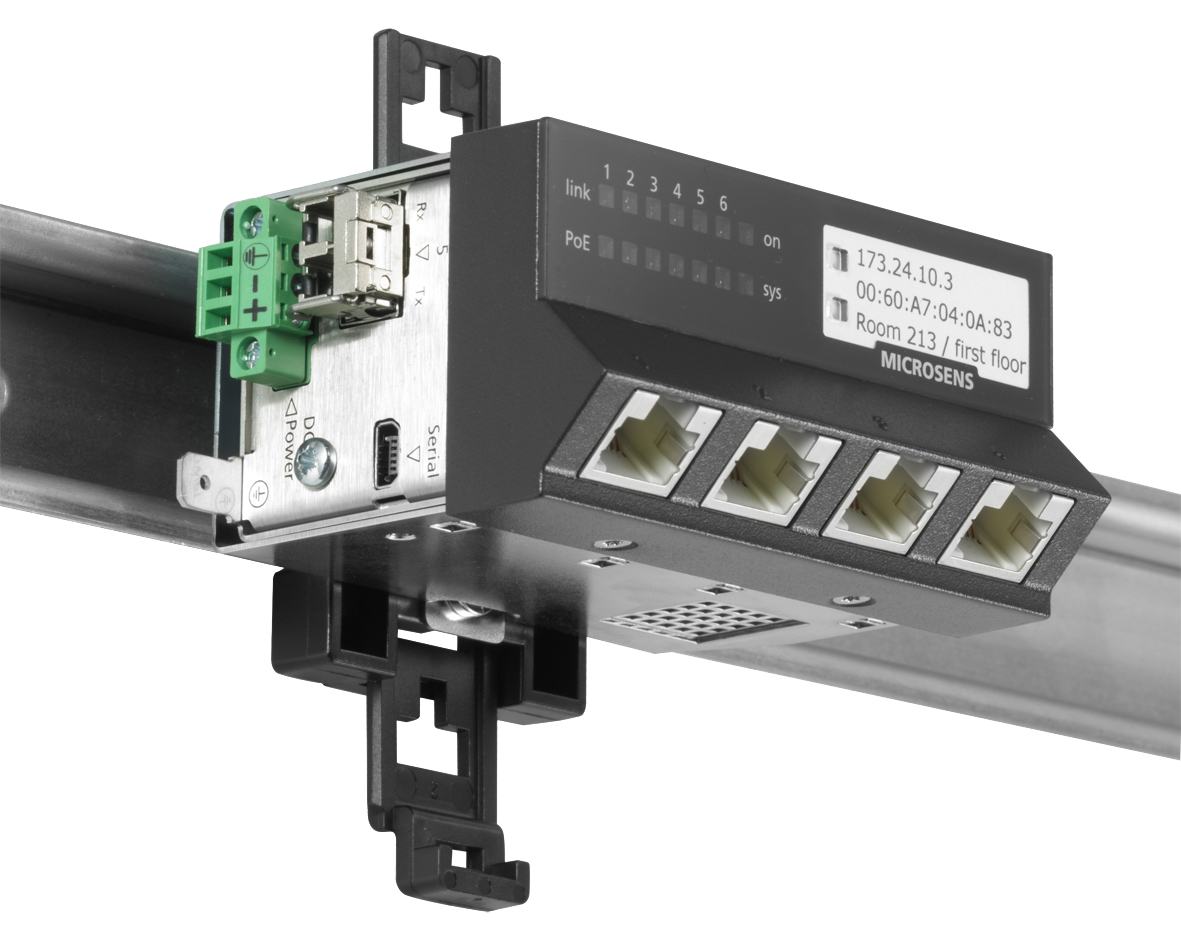

Product information for MICROSENS MS440217PMXH-48G6: The 6-Port GbE Ruggedized Micro Switch G6 with PoE+ functionality is a high-performance network solution specifically designed for industrial applications. With an extended operating temperature range from -25°C to +65°C, this switch is ideal for demanding environments. Its robust design and fanless construction ensure maximum reliability and easy integration into existing network systems. The standard 35-mm DIN rail mounting system allows for quick and flexible installation. The switch is available in multiple variants, including horizontal and vertical designs with various connection options such as fiber or TP uplinks. Variants with two SFP uplinks support ring topologies and are fully compatible with the Profi Line, Profi Line+, and Profi Line Modular industrial switch series. With PoE+ (Power over Ethernet Plus) compliant with IEEE 802.3at, connected devices such as cameras or access points can be powered with up to 30 W per port. Technical Specifications: Switch: Type: Gigabit Ethernet Switch Layer 2+, IEEE 802.3 compliant Performance: Store-and-forward, full wire-speed, non-blocking on all ports MAC Addresses: 8,192, automatic learning and aging Jumbo Frames: max. 10,240 bytes PoE+ (Power over Ethernet Plus): Standard: IEEE 802.3at Max Power: 30 W per port, max. 80 W total Ports: 4/5x 10/100/1000Base-T (RJ-45) External Power Supply: Typical 54 VDC Connections: Uplink (Fiber Variants): 1x/2x 100/1000Base-X SFP slot Uplink (TP Variant): 1x 10/100/1000Base-T RJ-45 PD Local Ports: 4x/5x 10/100/1000Base-T (RJ-45) Expansion Port: RS-232 console port (mini USB or RJ-45) Auto MDI/MDI-X and Auto-Negotiation for all RJ-45 ports Power Supply: Input Voltage: 44..57 VDC (typ. 54 V) Power Consumption: Typical 4.5 W (without PoE), max. 80 W (with PoE) Connector: 3-pin terminal block Additional Grounding: 6.3 mm flat connector Operating Conditions: Operating Temperature: -25°C to +65°C Storage Temperature: -25°C to +85°C Humidity: 10..90 %, non-condensing Mechanical: Dimensions incl. DIN Rail Mounting: 90 x 78.2 x 53.7 mm (L x W x H) Weight: 350 g Network Management: CPU: High-Performance 800 MHz ARM CPU Operating System: Linux with fast boot time Management: Web Manager (HTTP/HTTPS), Telnet/SSH/Console, SNMP v1/v2c/v3 Supports IPv4/IPv6 Dual Stack and central management platform (NMP) Quality: Made in Germany: Manufactured and quality-controlled in Hamm, Germany Burn-in Test: 48 hours of stress testing to ensure reliability Ordering Information: Horizontal Design: – MS440209PMXH-48G6+: 1x SFP Uplink, 5x TP Ports with PoE+ – MS440207PMXH-48G6+: 2x SFP Uplinks, 4x TP Ports with PoE+ – MS450186PMXH-48G6+: 1x TP Uplink, 5x TP Ports with PoE+ Vertical Design: – MS440219PMXH-48G6+: 1x SFP Uplink, 5x TP Ports with PoE+ – MS440217PMXH-48G6+: 2x SFP Uplinks, 4x TP Ports with PoE+ – MS450187PMXH-48G6+: 1x TP Uplink, 5x TP Ports with PoE+ Accessories: SFP Transceivers: – Multimode 850 nm, 1000Base-SX: MS100200DX – Single Mode 1310 nm, 1000Base-LX: MS100210DX Console Cable: RS-232 (mini USB or RJ-45) to SUBD9 female Industrial Power Supplies: – 48VDC/1.05A (50W): MS700455 – 48VDC/2.5A (120W): MS700456 Package Contents: 1x Ruggedized Micro Switch G6 1x Grounding Cable (20 cm) 1x Power Connector 1x DIN Rail Mount Installed 1x Set of Pictogram Stickers
