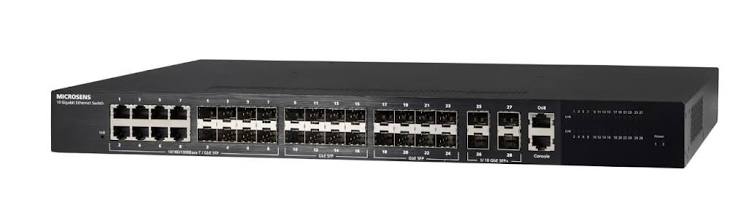

MICROSENS MS400990M 28-Port 10G Layer 2/Layer 3 Managed Fiber Switch
Product Overview
The MICROSENS MS400990M is a high-performance 28-Port 10 Gigabit Layer 2/Layer 3 Managed Fiber Switch designed for enterprise, industrial, and campus networking environments. Built for high-density fiber deployments, this 19-inch rack-mount switch combines 24 Gigabit SFP fiber ports, 4 x 10G SFP+ uplink ports, and 8 Gigabit RJ45 combo ports, delivering exceptional bandwidth, advanced routing capabilities, and enterprise-grade network security.
Designed to meet the demands of modern fiber infrastructures, the MS400990M supports comprehensive Layer 2 and Layer 3 switching features, advanced QoS, VLAN management, multicast optimization, and redundant network topologies. Whether deployed in enterprise LANs, data centers, industrial automation, smart city projects, or campus networks, the switch provides reliable, scalable, and secure network connectivity with centralized management and high availability.
Key Features
- 24 × 100/1000Base-X SFP Fiber Ports
- 4 × 1G/10G SFP+ Uplink Ports
- 8 × 10/100/1000Base-T RJ45 Combo Ports
- Layer 2 & Layer 3 Managed Switching
- 128 Gbps Non-Blocking Switching Capacity
- Advanced IPv4 Routing
- VLAN, QoS & Multicast Support
- ERPS (G.8032) Ring Redundancy
- STP, RSTP & MSTP
- Static Routing
- IGMP Snooping
- DHCP Client, Server & Relay
- SNMP v1/v2c/v3 Management
- Web GUI, CLI & SSH Management
- Dual Modular Power Supply Support
- Fanless Industrial Design
- 19-inch 1U Rack Mount
High-Density Fiber Connectivity
The MS400990M is specifically engineered for networks requiring extensive fiber connectivity. With 24 Gigabit SFP interfaces and 4 high-speed 10G SFP+ uplinks, it enables seamless aggregation of fiber links while maintaining high throughput and low latency.
Its 8 RJ45 combo ports provide flexible copper connectivity, making the switch suitable for hybrid fiber/copper network deployments.
Advanced Layer 2 & Layer 3 Performance
The switch offers a comprehensive set of enterprise networking features, enabling efficient traffic management and scalable network design.
Layer 2 capabilities include:
- IEEE 802.1Q VLAN
- Port-Based VLAN
- Link Aggregation (LACP)
- Rapid Spanning Tree (RSTP)
- Multiple Spanning Tree (MSTP)
- ERPS Ring Protection
- IGMP Snooping
- Jumbo Frames
- Port Mirroring
- Storm Control
Layer 3 capabilities include:
- Static IPv4 Routing
- Inter-VLAN Routing
- DHCP Relay
- DHCP Server
- ARP Management
- Routing Tables
These features allow the MS400990M to serve as both an aggregation switch and a core Layer 3 switching platform.
High-Speed 10G Uplink Connectivity
Four dedicated 1G/10G SFP+ uplink ports provide high-bandwidth backbone connectivity for aggregation switches, core switches, and data center interconnections.
The 10G uplinks help eliminate network bottlenecks while ensuring maximum throughput for demanding enterprise applications such as virtualization, storage networking, video surveillance, and large-scale data transfers.
Enterprise-Class Network Security
The MS400990M incorporates comprehensive security mechanisms to protect enterprise networks from unauthorized access and network attacks.
Security features include:
- IEEE 802.1X Authentication
- Access Control Lists (ACL)
- Port Security
- DHCP Snooping
- IP Source Guard
- ARP Inspection
- MAC Address Management
- User Authentication
- Secure SSH Management
- SNMPv3 Encryption
These capabilities help maintain network integrity while protecting sensitive business data.
